Does anyone have or know where I can find a diagram showing what each pin on the instrument cluster wiring clip goes to? I’m re doing my gauges and it would be very helpful if I knew which wires were for the signal indicators and high beams etc.
Thanks
Wiring diagrams are available for most Cougar models, and have the pin diagram. What year/model do you have?
I have a 69 standard

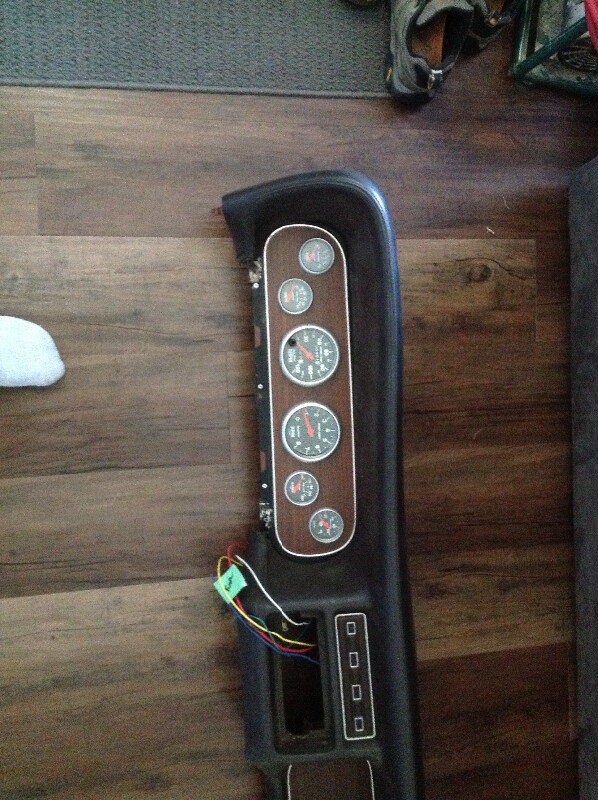

These are the gauges I’m putting in. Everything’s pre wired I just need to know what each pin on the factory harness is so I can hook up my signal indicators and high bean indicator fuel level etc. if anyone can point me to where I can find a wiring diagram or could help me out that would be great.
I ordered mine from the below site, more costly than the colorized versions you see on fleabay and such but it shows every wire and every connection in the car. When I got mine I took them to Kinko’s and had them blown up so I wouldn’t damage the originals and read them most of the time without my glasses
I would recommend to anyone I’m very satisfied
Thanks. My brother came by today and we just traced the circuit board and tested everything and figured it out. It’s going to be nice having working gauges finally.
